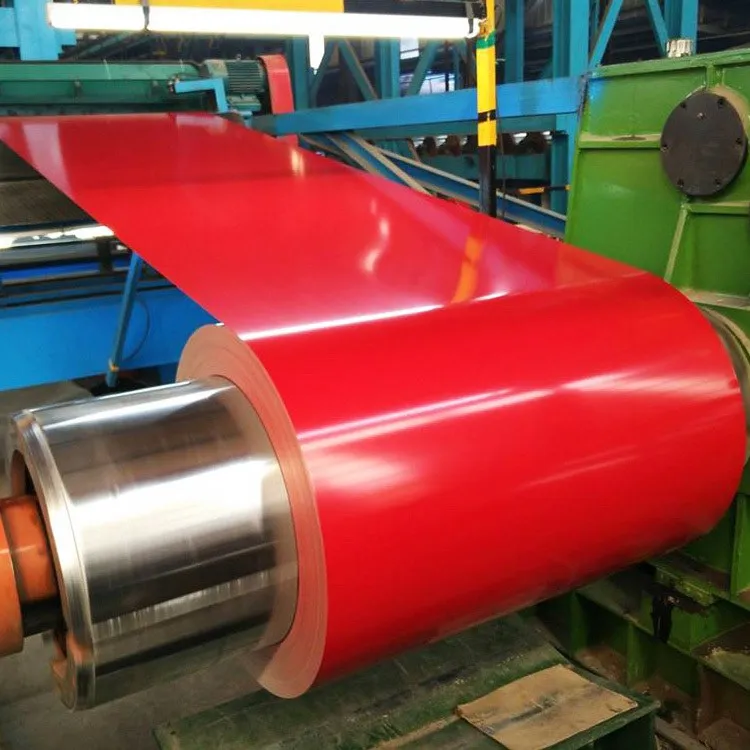

PPGI / PPGL color-coated coil hub — lock RAL, paint system, substrate coating, thickness, and film before RFQ.
| Property | Value |
|---|---|
| Product | Prepainted galvanized (PPGI) / prepainted galvalume (PPGL) coil |
| Substrate | GI or GL metallic coating (confirm coating mass on RFQ) |
| Coating mass (substrate) | Typical Z60–Z275 or AZ50–AZ150 class by order |
| Paint system | PE / HDP / SMP / PVDF (confirm system and µm) |
| Color | RAL / custom; see RAL buyer tool for common export colors |
| Thickness | 0.12–1.2 mm |
| Width | 600–1250 mm |
| Standards | EN 10169, ASTM A755 |
| Protective film | Optional film for forming and export handling |
| Paint build | Top coat + primer + back coat, or another approved build; every layer and target film is order-dependent |
| Color sample approval | Confirm substrate, paint system, RAL or custom target, gloss and texture on an approved sample before bulk production |
| QC checkpoints | Metallic coating, paint film, gloss, visual color difference or Delta E basis, adhesion and T-bend only as applicable to the accepted PO or ITP |
| MOQ / lead time | Confirm with sales by color, paint system, dimensions, quantity and current production schedule |
PPGI / PPGL color-coated coil hub for export roofing, cladding, and appliance programs. Choose paint system (PE / SMP / HDP / PVDF), substrate coating, and RAL on one family page. Wrinkle, matte, and print effects are surface options—not separate thin product pages. For formed panels, pair this hub with the roofing profiles tool (wave vs trapezoidal/IBR).
Write surface, profile, and strip width into the RFQ and tools—not extra near-duplicate product pages.
RFQ documents & delivery
Packing, MTC, and inspection path — include them in your RFQ for an actionable quote.
Freeze the approved color sample and PO or ITP before production. Applicable checkpoints can include substrate and metallic coating, top coat, primer and back coat film, gloss, visual color comparison or an agreed Delta E method, adhesion and T-bend. No numeric tolerance or test result is implied unless the accepted order states it.
Supply confidence
Fixed delivery proof plus this product’s applications — confirm stock, inspection, and end use before RFQ.
Strapped coils and plates staged by lot so grade, thickness, and destination port can be matched quickly for shipment.
Overseas buyers and third-party inspectors are welcome to verify specs, heat numbers, and packing. SGS/BV support available.
Typical uses for this product: Roofing and wall-panel roll forming; Appliance, enclosure and cabinet panels after finish approval; Flashings, trims and other color-matched formed components. Share your end use, environment, and packing needs in the RFQ.
FAQ
PPGI uses a galvanized substrate and PPGL uses an aluminium-zinc alloy-coated substrate. Select the substrate with the project standard, exposure, forming route and cut-edge design rather than from the acronym alone.
Start from exposure, appearance, forming and warranty requirements, then have the technical parties approve the offered paint system and build. This page does not publish universal life or performance rankings.
Submit the RAL or custom target, gloss and texture with the RFQ. The accepted workflow freezes substrate, paint system and an approved color sample before bulk production; inspection follows the PO or ITP.
No unconditional figure applies. Confirm with sales by color, paint system, dimensions, quantity and current production schedule; custom colors may require a sample step.
